Features
-
Joint
Three tracks in a T
T piece of 166.1 × 100.7 × 35.5 mm with three track heads. Left or right is the direction of the branch, 1 or 2 the side of the earth conductor; the connection diagram in the manual shows where each version goes.
-
Compatibility
For the A-Track 3-phase track
Made for the A-Track 1.5 m 3-Phase Track profile; it does not fit a 1-phase track. Installation is shown in the manual of the A-Track 3-phase track system. Class I, for dry indoor areas, to be connected in line with the applicable wiring regulations.
-
Version
Black, left 1, 166.1 × 100.7 × 35.5 mm
Plastic, black. 5-year warranty. The same connector comes in white.
Application
T connector for the A-Track 3-phase track, black, left 1
The T connector branches the run in three directions. Installation is shown in the manual of the A-Track 3-phase track system.
A 3-phase track has three 230V circuits (L1, L2 and L3 with a shared neutral): three groups of spots can be switched or dimmed separately. Class I, for dry indoor areas, to be connected in line with the applicable wiring regulations.
In the box
Scope of supply, per unit.
Included
- Connector
Specifications
Measurements are nominal. Check the dimensioned drawing before cutting.
Dimensions & Recessed Fit
- Dimensions
- L 166.1 × W 100.7 × H 35.5 mm
General & Mounting
- Mounts onto
- Track
- Indoor / outdoor
- Interior
- Appliance class
- Class I (earthed)
- IP rating
- IP20
Electrical & Safety
- Input voltage
- 230 V
Colour, Material & Finish
- Colour
- Black
- Material
- Plastic
Frequently asked questions
Questions we are regularly asked about this fixture and its variants.
How do you install the A-Track 3-Phase T Connector?
The installation of the A-Track 3-Phase T Connector is shown in the manual of the A-Track 3-phase track system, also on this product page. The three track heads each slide into a track end and are screwed tight. Switch off the mains before starting; the connection must comply with the applicable wiring regulations.
What is in the box of the A-Track 3-Phase T Connector?
The A-Track 3-Phase T Connector itself. Tracks and spots are ordered separately. The A-Track 3-Phase T Connector connects to 230V and is Class I; indoor use only.
Which version of the A-Track 3-Phase T Connector do you need?

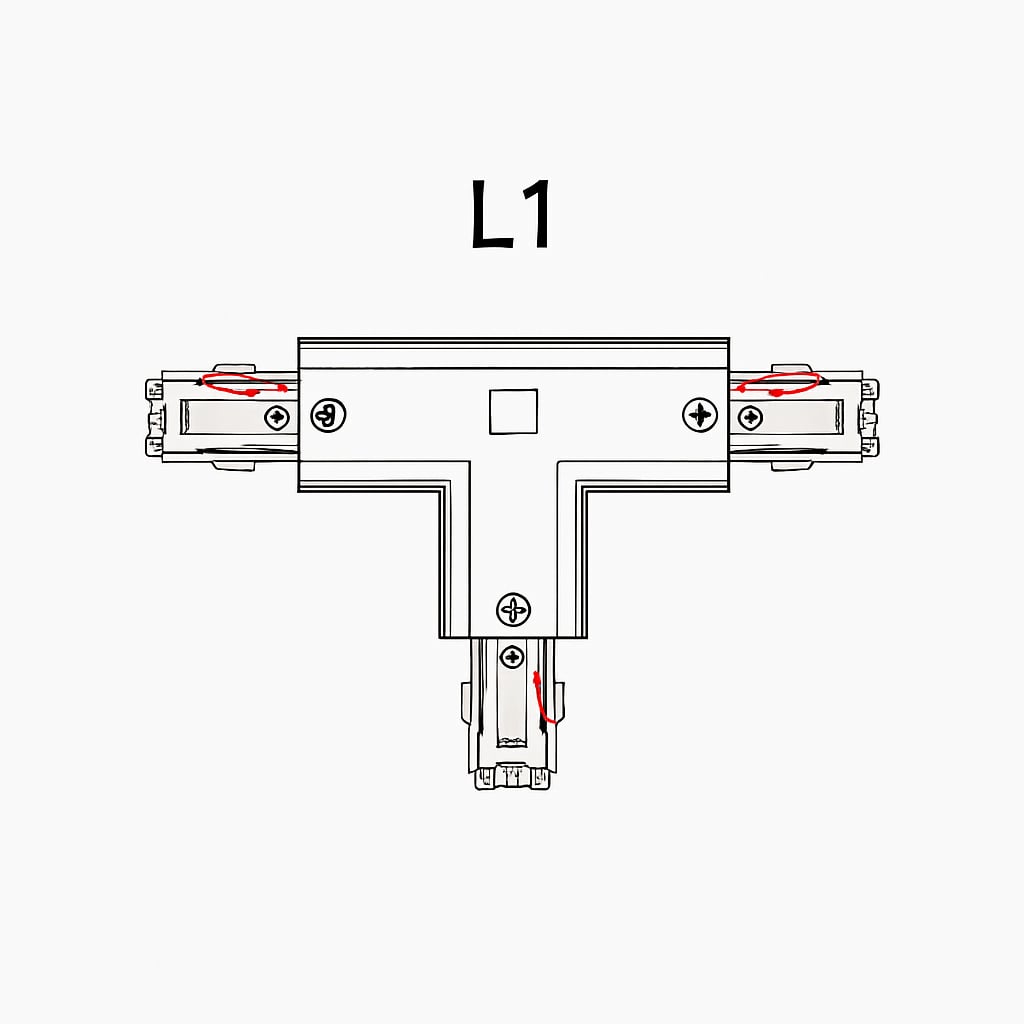

Left or right is the direction of the branch, 1 or 2 the side on which the earth conductor runs. The four versions are not interchangeable; the red line on the connection diagram in the manual shows which goes where.
Are the black and the white versions of the A-Track 3-Phase T Connector technically identical?
Yes. Both versions have the same dimensions and the same connection; only the colour differs.
