In stock

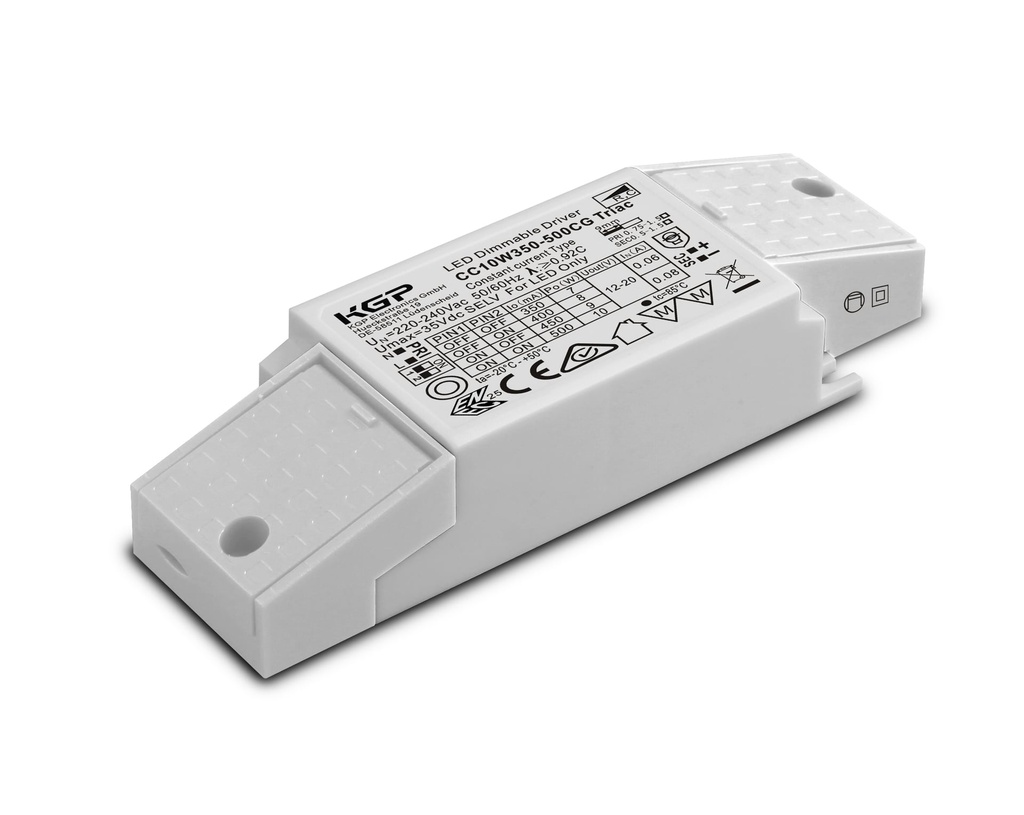

This advanced dimmable LED driver offers maximum flexibility for your lighting installations. Thanks to the integrated DIP-switch, you can precisely adjust the output current to match your LED module, choosing between 350mA, 400mA, 450mA, or 500mA. This ensures compatibility with a wide variety of lighting fixtures.
The driver supports Triac dimming (both Leading and Trailing Edge), allowing for smooth light intensity adjustment from 10% to 100% using most standard dimmers. With an efficiency of up to 82% and a power factor of 0.92, it provides an energy-efficient solution for both residential and commercial applications. The housing includes a removable cord grip, making installation easier in tight spaces.
- Type: Constant Current
- Adjustable Current: 350mA, 400mA, 450mA, 500mA (via DIP-switch)
- Power Output: Max. 10W
- Dimmable: Yes, Triac (Leading & Trailing edge)
- Protection Rating: IP20 (indoor usage)
- Lifetime: 50,000 hours with a 5-year warranty
Product details
General Details
▼
- SKU: P02A10355011
- Scope: Interior
- Appliance Class: II
- Dimmable: Yes
Dimensions
▼
- Height: 23 mm
- Length: 125 mm
- Width: 41 mm
Light Details
▼
- Dim Technology: Phase cut dim
Technical Details
▼
- IP Value: IP20
- Voltage: 230 V
- Power Consumption: 10 W
