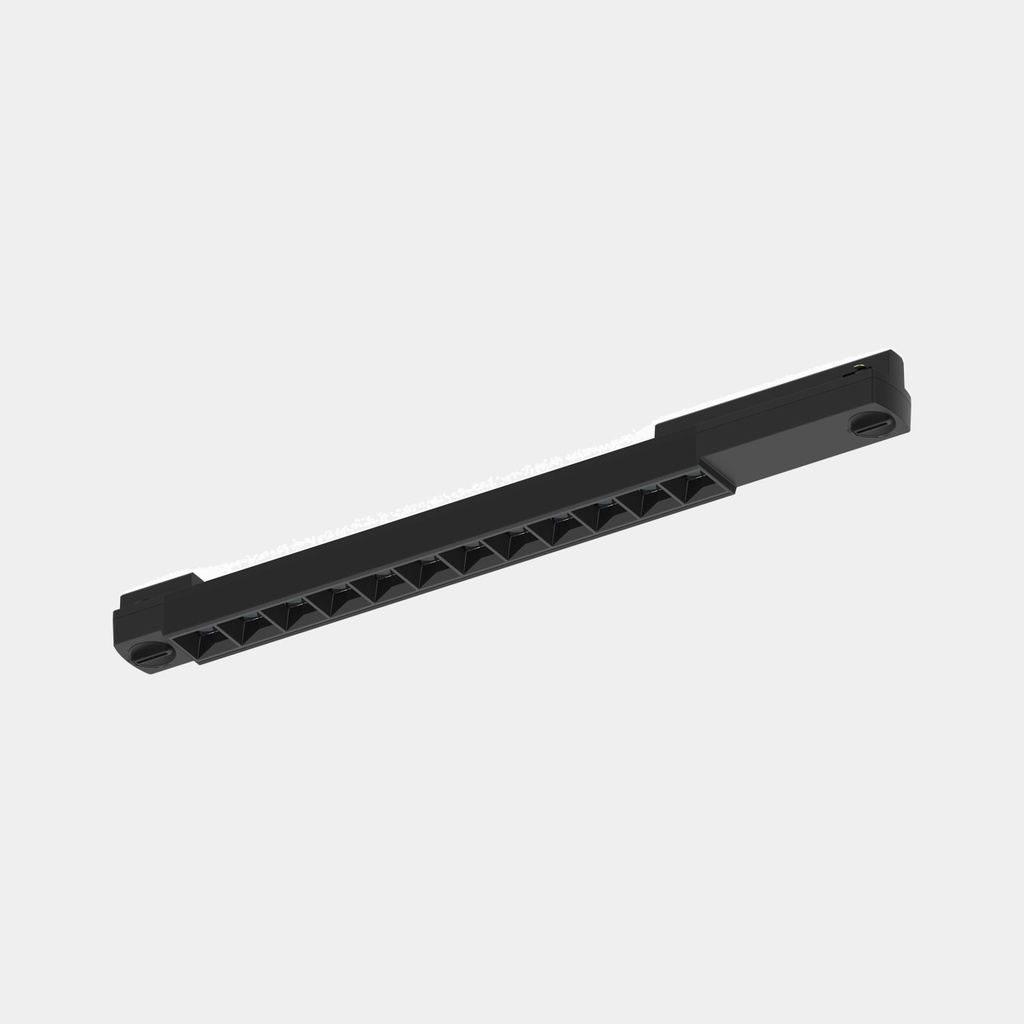

A-Line Dot 30 Track Light Black

The A-Line Dot 30 Track Light is a 435 mm LED module for the A-Line 1-phase track. Twelve light points behind a louvre give 1146 lm in a narrow 24° beam, at 2700K and CRI 90.

89.90 € 89.90 € (Tax included)

The A-Line Dot 30 Track Light is a 435 mm LED module for the A-Line 1-phase track. Twelve light points behind a louvre give 1146 lm in a narrow 24° beam, at 2700K and CRI 90.

  • Color - Black
Add to cart
Free delivery in Belgium from €...
Under €...: €... shipping fee
Question about this product or project pricing? Contact us
Professional? Apply for a B2B account
Out of stock — Expected delivery: 15/12/2026

Features

  • Light

    Twelve light points, 24°

    Twelve light points behind a louvre: 1146 lm at 10.0 W, so 114.6 lm/W. 2700K, CRI 90, energy class E.

  • Track

    For the A-Line 1-phase track

    Goes into the A-Line 1.5 m 1-Phase Track profile, with the adapters at both ends. Built-in driver, dimmable with a TRIAC dimmer. IP20, Class I, indoor use only.

  • Version

    Black, 435 mm

    Aluminium, powder-coated black. LED not replaceable, rated life 50000 hours, 5-year warranty.

Application

Dot 30 LED module for the A-Line 1-phase track, black

The A-Line Dot 30 Track Light goes into the A-Line 1.5 m 1-Phase Track profile; the installation is shown in the manual of the track.

A 1-phase track has one 230V circuit: all spots on the run switch and dim together. IP20 and Class I: dry indoor areas.

In the box

Scope of supply, per unit.

Included

  • Fixture
  • Light source
  • LED driver

Specifications

Measurements are nominal. Check the dimensioned drawing before cutting.

Dimensions & Recessed Fit
Dimensioned drawing of the A-Line Dot 30 Track Light: L 435 × W 34 × H 38 mm, height including adapter
Dimensions
L 435 × W 34 × H 38 mm
General & Mounting
Indoor / outdoor
Interior
Appliance class
Class I (earthed)
Mounting (location)
Track
Adjustability
Fixed
Fixation (method)
Track
IP rating
IP20
Number of light points
12
Light
Color mode
White
Socket type
Integrated LED
LED lifetime
50000 h
Light output
1146 lm
Color rendering (CRI)
90
Light source
LED
Light color
2700K
Beam angle
24°
Efficacy (lm/W)
114.6
Total wattage
10 W
Electrical & Safety
Light source replaceability
Not replaceable
Dim technology
Phase-cut leading-edge (TRIAC)
Power source
Mains (corded)
Dimmable
Yes
Input voltage
230 V
Colour, Material & Finish
Colour
Black
Material
Aluminium
Finish
Powder coated

Energy label

The EU energy label and product information sheet of the light source.

E Energy label Product information sheet

Frequently asked questions

Questions we are regularly asked about this fixture and its variants.

How do you install the A-Line Dot 30 Track Light?

The A-Line Dot 30 Track Light goes into the A-Line 1.5 m 1-Phase Track profile. The adapters at both ends make the contact with the track; the installation is shown in the manual of the track, which is also on this product page. Only the module is in the box.

Is the A-Line Dot 30 Track Light dimmable?

Yes. The driver is built into the A-Line Dot 30 Track Light and is dimmable with a TRIAC (leading-edge) dimmer on the 230V circuit of the track. All spots on the same 1-phase track dim together.

Can the LED of the A-Line Dot 30 Track Light be replaced?

No. LED and driver are built in and not replaceable; if one fails, the module is replaced. The rated life is 50000 hours, with a 5-year warranty.

Accessories

Parts that go with this fixture.

Documents

Datasheet and installation manual, free to download.
