Features
-
Suspension point
One suspension point per kit

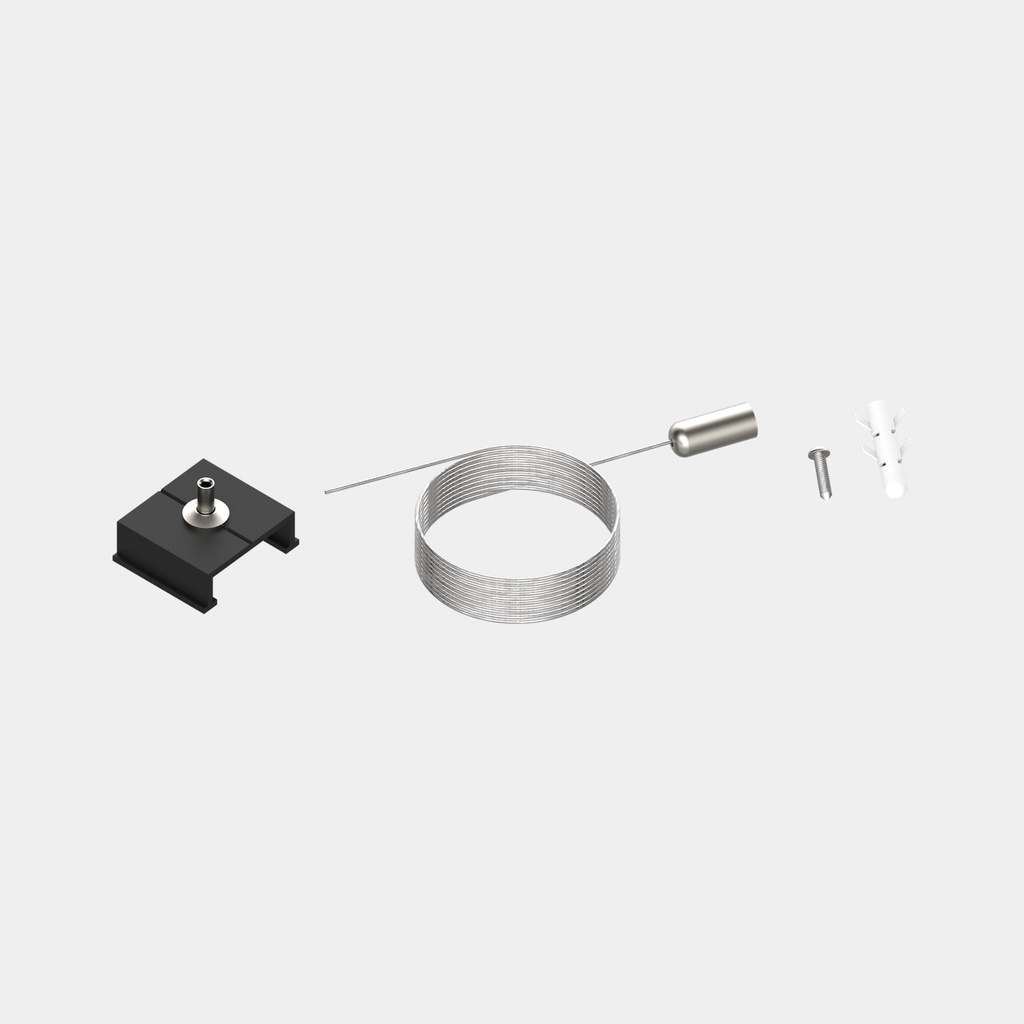

Aluminium track bracket, 1.5 m steel cable and ceiling fixing with screw and anchor. An A-Line 1.5 m 1-Phase Track profile needs two kits.
-
Compatibility
For the A-Line 1-phase track
Made for the A-Line 1.5 m 1-Phase Track profile. As standard the track is screwed to the ceiling; with the suspension kit it hangs from steel cables. Indoor use only.
-
Version
Black, 1.5 m cable
Aluminium track bracket, powder-coated black, to match the black track; steel cable. 5-year warranty. The same suspension kit comes in white.
Application
Suspension kit for the A-Line 1-phase track, black
With two A-Line Suspension Kits, an A-Line 1.5 m 1-Phase Track profile hangs from steel cables below the ceiling instead of being screwed to it. Each kit is one suspension point.
Indoor use only.
In the box
Scope of supply, per unit.
Included
- Suspension kit
- Mounting hardware
Specifications
Measurements are nominal. Check the dimensioned drawing before cutting.
Dimensions & Recessed Fit
- Drop length (max)
- 1500 mm
- Dimensions
- Cable length 1.5 m
General & Mounting
- Mounts onto
- Track, Ceiling
- Indoor / outdoor
- Interior
Colour, Material & Finish
- Colour
- Black
- Material
- Aluminium, Steel
- Finish
- Powder coated
Frequently asked questions
Questions we are regularly asked about this fixture and its variants.
How many A-Line Suspension Kits does one track need?
Two for an A-Line 1.5 m 1-Phase Track profile. One A-Line Suspension Kit is one suspension point, with one track bracket and one steel cable.
What is in the box of the A-Line Suspension Kit?
An aluminium track bracket, a 1.5 m steel cable, the ceiling fixing and a screw with anchor. The track is ordered separately. The A-Line Suspension Kit is for indoor use only.
Are the black and the white versions of the A-Line Suspension Kit technically identical?
Yes. Both versions of the A-Line Suspension Kit have the same 1.5 m steel cable and the same ceiling fixing. Only the colour of the aluminium track bracket differs, to match the black or the white track.
Accessories
Parts that go with this fixture.
![[L01C315011B0] A-Line 1.5 m 1-Phase Track profile (Black)](/web/image/product.product/9641/image_128)
Documents
Datasheet and installation manual, free to download.
-
Download
Installation manual
