Features
-
Connection
Mains connection at the track end
The feed-in slides into the track end and is screwed tight. Live to L, neutral to N, earth to the earth clamp; wires of 1.5 to 2.5 mm², stripped 8 mm.
-
Compatibility
For the A-Track 1-phase track
Made for the A-Track 1.5 m 1-Phase Track profile; it does not fit a 3-phase track or an A-Line track. Installation is shown in the manual of the A-Track 1-phase track system. Class I, for dry indoor areas, to be connected in line with the applicable wiring regulations.
-
Version
Black, 104 × 35 × 18 mm
Plastic, black. 5-year warranty. The same feed-in comes in white.
Application

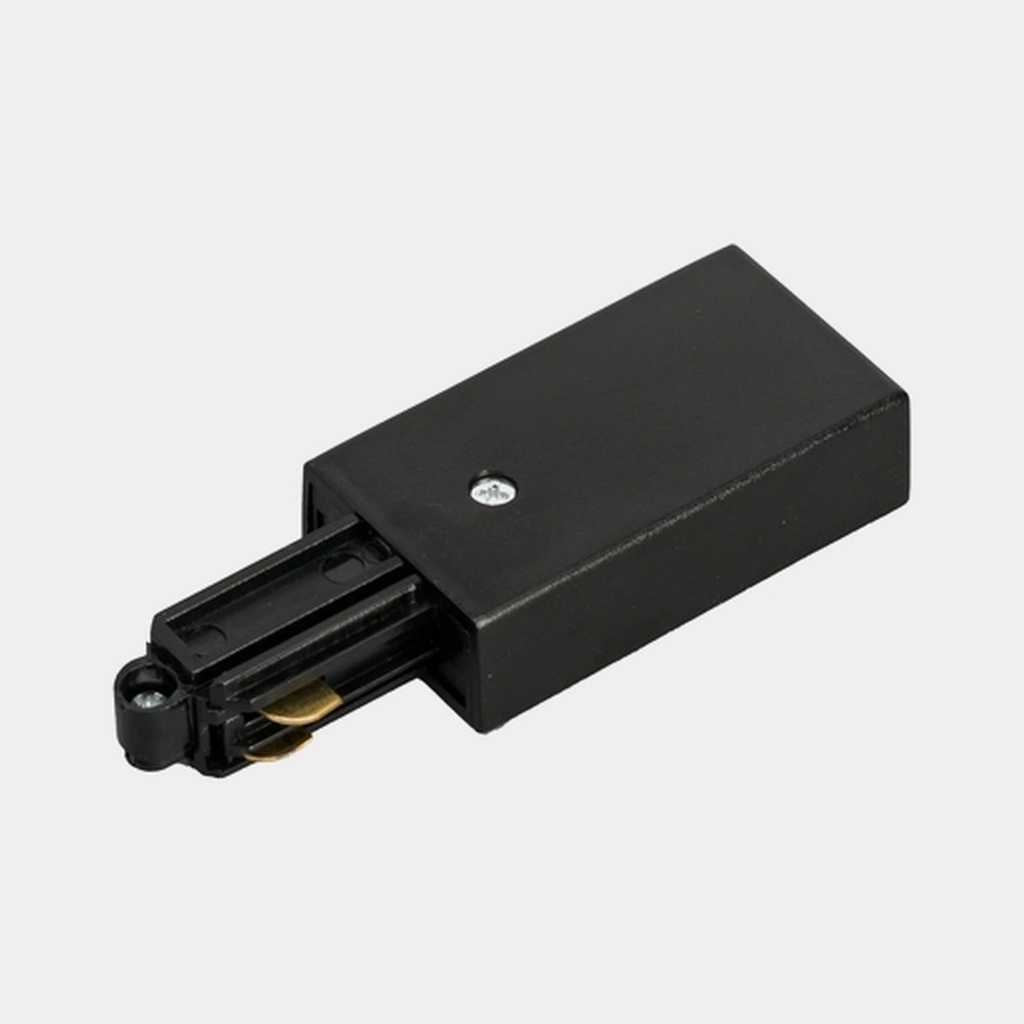

Feed-in for the A-Track 1-phase track, black
The feed-in goes at the start of the run; feed each system at one point only. Installation is shown in the manual of the A-Track 1-phase track system.
A 1-phase track has one 230V circuit: all spots on the run switch together. Class I, for dry indoor areas, to be connected in line with the applicable wiring regulations.
In the box
Scope of supply, per unit.
Included
- Feed-in
Specifications
Measurements are nominal. Check the dimensioned drawing before cutting.
Dimensions & Recessed Fit
- Dimensions
- L 104 × W 35 × H 18 mm
General & Mounting
- Article number
- T01A4PS010B
- Mounts onto
- Track
- Indoor / outdoor
- Interior
- Appliance class
- Class I (earthed)
- IP rating
- IP20
Electrical & Safety
- Input voltage
- 230 V
Colour, Material & Finish
- Colour
- Black
- Material
- Plastic
Frequently asked questions
Questions we are regularly asked about this fixture and its variants.
How do you install the A-Track 1-Phase Feed-in?
The installation of the A-Track 1-Phase Feed-in is shown in the manual of the A-Track 1-phase track system, also on this product page. The feed-in slides into the track end and is screwed tight; the wires then go to the terminals. Switch off the mains before starting; the connection must comply with the applicable wiring regulations.
What is in the box of the A-Track 1-Phase Feed-in?
The A-Track 1-Phase Feed-in itself. Tracks and spots are ordered separately. The A-Track 1-Phase Feed-in connects to 230V and is Class I; indoor use only.
Are the black and the white versions of the A-Track 1-Phase Feed-in technically identical?
Yes. Both versions have the same dimensions and the same connection; only the colour differs.
