Features
-
Installation
Surface mounted on the wall, 103 × 60 × 60 mm
You screw the mounting bracket to the wall, connect the wires to the terminal block and screw the luminaire onto the bracket.
-
Light
567 lm at 9W, 2700K or 3000K
Integrated LED with CRI 90 and a 36° beam angle, upwards and downwards. You select the colour temperature with the CCT selector. Dimmable with a phase-cut dimmer, energy class G.
-
Version
Black, powder-coated aluminium

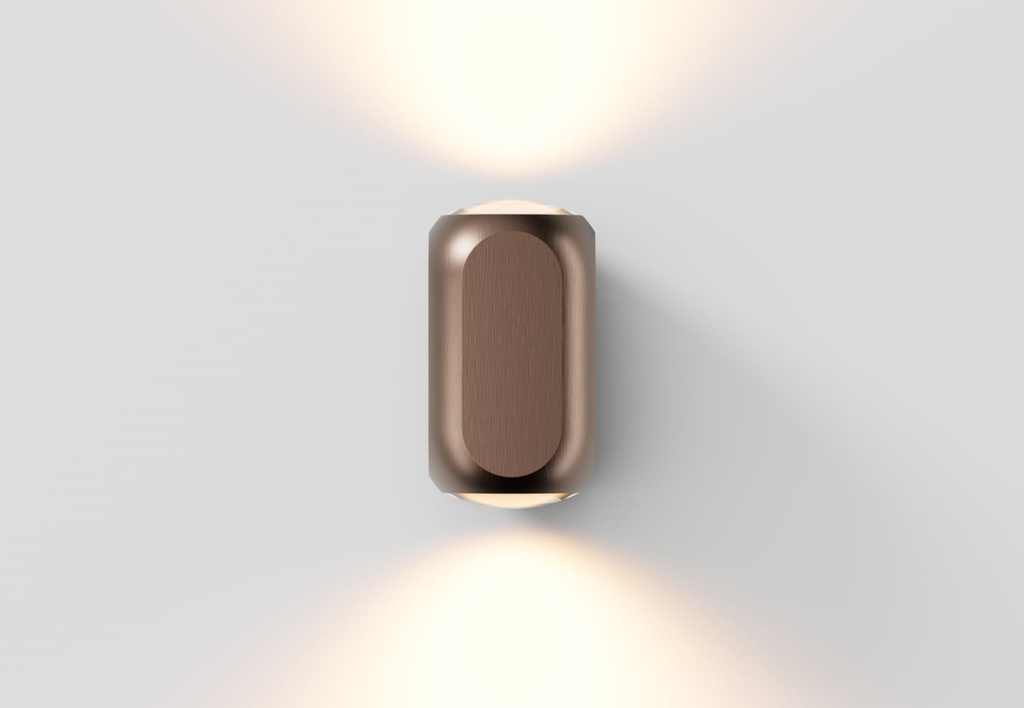

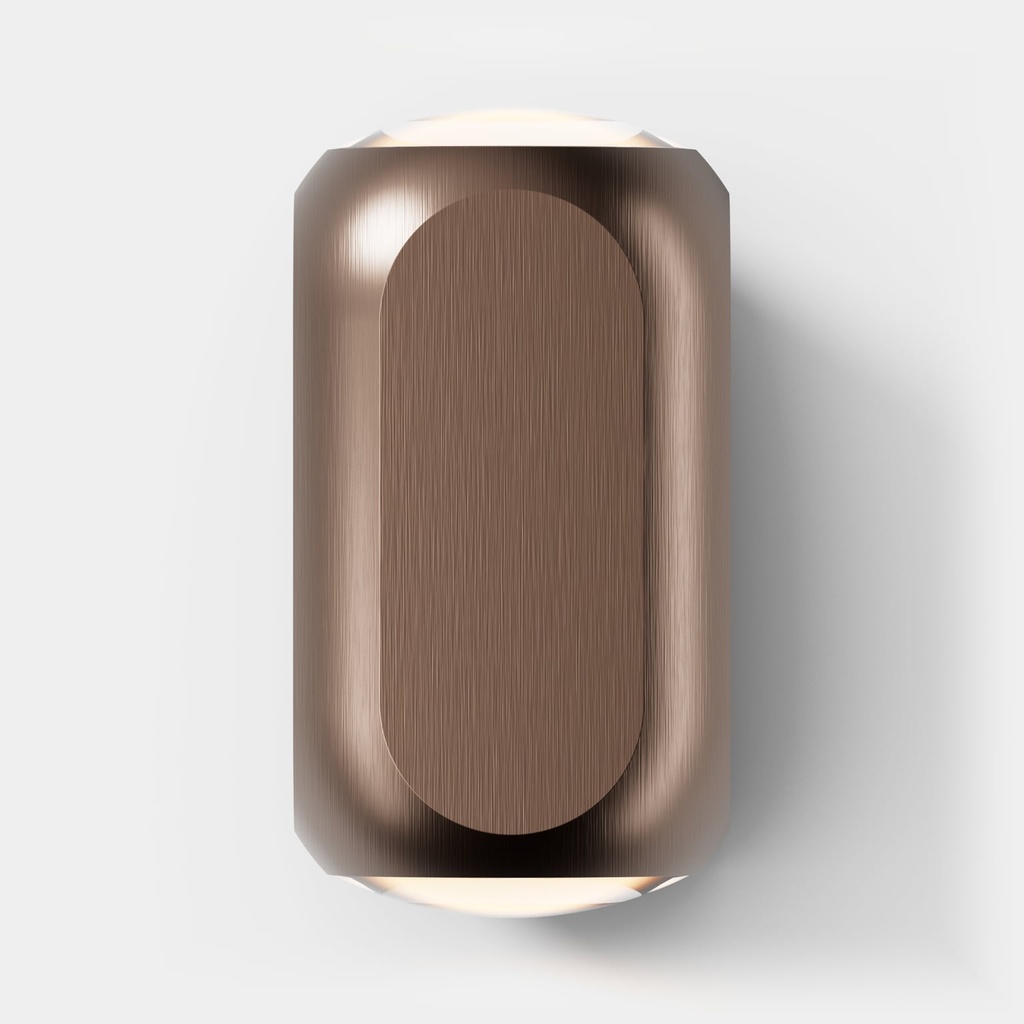

Housing in powder-coated aluminium, IP20, Class I, 230V, with a 5-year warranty. The same wall light is also available in white, brushed brass and brushed bronze.
Application
Black, up and down light, IP20
The luminaire emits on two sides: upwards and downwards. IP20 and for indoor use only: to be specified in dry indoor areas.
In the box
Scope of supply, per unit.
Included
- Fixture
- Light source
- LED driver
- Mounting bracket
- Mounting hardware
- Manual
Specifications
Measurements are nominal. Check the dimensioned drawing before cutting.
Dimensions & Recessed Fit
- Dimensions
- H 103 × W 60 mm
General & Mounting
- Indoor / outdoor
- Interior
- Appliance class
- Class I (earthed)
- Mounting (location)
- Wall
- Adjustability
- Fixed
- Fixation (method)
- Surface
- IP rating
- IP20
- Number of light points
- 2
Light
- Color mode
- White
- Socket type
- Integrated LED
- LED lifetime
- 30000 h
- Light output
- 567 lm
- Color rendering (CRI)
- 90
- Light source
- LED
- Light color
- 2700K/3000K
- Beam angle
- 36°
- Efficacy (lm/W)
- 63
- Total wattage
- 9 W
Electrical & Safety
- Light source replaceability
- Not replaceable
- Dim technology
- Phase-cut leading-edge (TRIAC)
- Power source
- Mains (corded)
- Dimmable
- Yes
- Input voltage
- 230 V
Colour, Material & Finish
- Finish
- Powder coated
- Colour
- Black
- Material
- Aluminium
Energy label
The EU energy label and product information sheet of the light source.
Frequently asked questions
Questions we are regularly asked about this fixture and its variants.
How do you set the colour temperature of the Box Up & Down?
With the CCT selector you choose 2700K or 3000K. Switch off the power before you change it.
Is the Box Up & Down dimmable?
Yes, with a phase-cut dimmer. The driver is built into the luminaire; no separate power supply is needed.
Can the Box Up & Down be used in a bathroom or outdoors?
No. The Box Up & Down is rated IP20 and is for indoor use in dry areas only.
What is in the box of the Box Up & Down?
The luminaire with integrated LED and driver, the mounting bracket, wall plugs and screws, and the instruction manual.
Does the black Box Up & Down give less light?
No. All four versions are registered in EPREL at 567 lm and 9W; the housing colour does not change the light output.
Documents
Datasheet and installation manual, free to download.
