Features
-
Installation
Surface mounted on the wall, drilling centres 30 × 100 mm
The mounting plate comes loose in the box and is screwed to the wall first; the body then slides onto it. Drill Ø6 mm, 93 mm projection. Class I, so a protective earth conductor is required.
-
Light source
Two GU10 sockets, lamps not included
You choose both LED lamps yourself: up to 11W each, with a 50 mm reflector diameter — the size the trade calls PAR16. Light colour, beam angle and dimming come from those lamps, not from the luminaire.
-
Outdoor use
IP65 over the full 150 mm height
Both light openings are sealed to IP65: dust-tight and resistant to water jets from any direction. The housing is powder-coated aluminium; the wall light carries a 5-year warranty.
Application
Two beams, up and down, IP65 and Class I

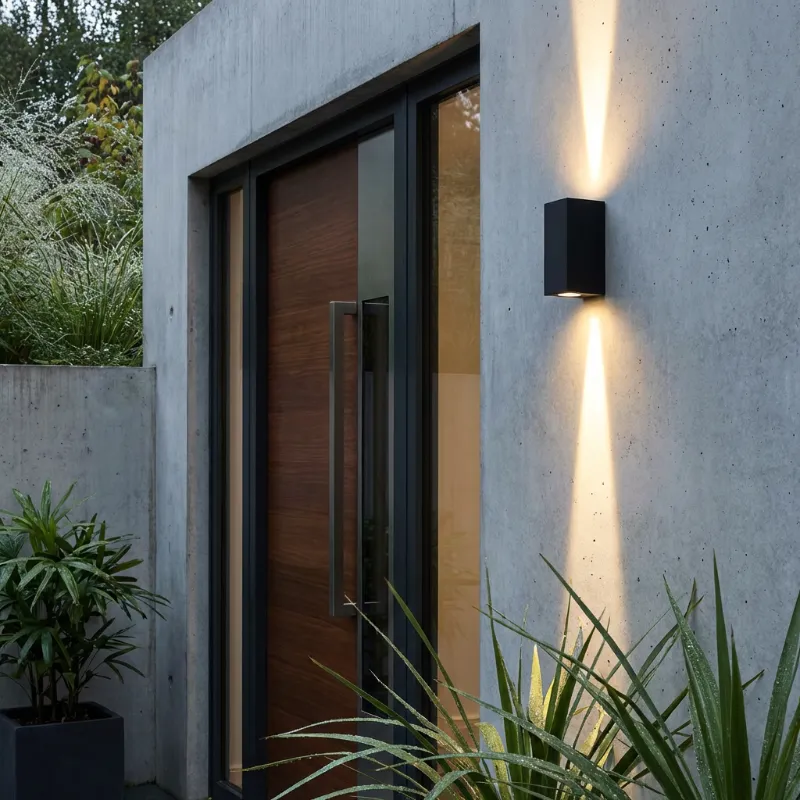

The wall light emits on two sides: one beam upwards and one down. IP65 covers dust and water jets from any direction, so it can be specified outdoors as well as in indoor areas exposed to splashing. Class I is the check before installation: a protective earth conductor must be present.
The lamps are not in the box. Two GU10 lamps of up to 11W each are enough; those lamps determine the light colour, the beam and whether the assembly dims.
In the box
Scope of supply, per unit.
Included
- Fixture
- Lamp holder
- Mounting bracket
- Mounting hardware
- Manual
Not included
- Light source
Specifications
Measurements are nominal. Check the dimensioned drawing before cutting.
Dimensions & Recessed Fit
- Dimensions
- H 15.0 × W 6.8 × D 9.3 cm
- Mounting plate dimensions
- L 150 × W 68 mm
General & Mounting
- Indoor / outdoor
- Interior, Exterior
- Fixation (method)
- Surface
- IP rating
- IP65
- Mounting (location)
- Wall
- Adjustability
- Fixed
- Appliance class
- Class I (earthed)
- Number of light points
- 2
Light
- Socket type
- GU10
- Light source
- PAR16
Electrical & Safety
- Dimmable
- Lightsource dependent
- Power source
- Mains (corded)
- Input voltage
- 230 V
Colour, Material & Finish
- Finish
- Powder coated
- Material
- Aluminium
- Colour
- Black
Frequently asked questions
Questions we are regularly asked about this fixture and its variants.
Can this wall light be installed outdoors?
Yes. Both light openings are sealed to IP65: dust-tight and resistant to water jets from any direction, and the wall light is intended for both indoor and outdoor use. Class I requires a protective earth conductor at the connection.
How many lamps do I need?
Two GU10 LED lamps, up to 11W each, with a 50 mm reflector diameter — the size the trade calls PAR16. The lamps are not included.
Can the two beams be switched separately?
No. Both sockets sit on one connection and switch together. Dimming is possible, but it depends on the lamps: with dimmable GU10 lamps and a suitable dimmer the assembly dims.
What are the drilling centres?
30 × 100 mm, with a Ø6 mm drill. The mounting plate comes loose in the box and is screwed on first; the body then slides onto it.
Accessories
Parts that go with this fixture.
![[B02A0GU111W2] Philips CorePro LEDspot 4W GU10 (2700K)](/web/image/product.product/274/image_128)
Documents
Datasheet and installation manual, free to download.
