Features
-
Light output
3104 lm at 24W, 3000K and CRI 92
The integrated LED delivers 3104 lm at 24.0W, or 129 lm/W. Light colour 3000K, colour rendering CRI 92, 41° beam. Energy class D. The spot is not dimmable.
-
Mounting

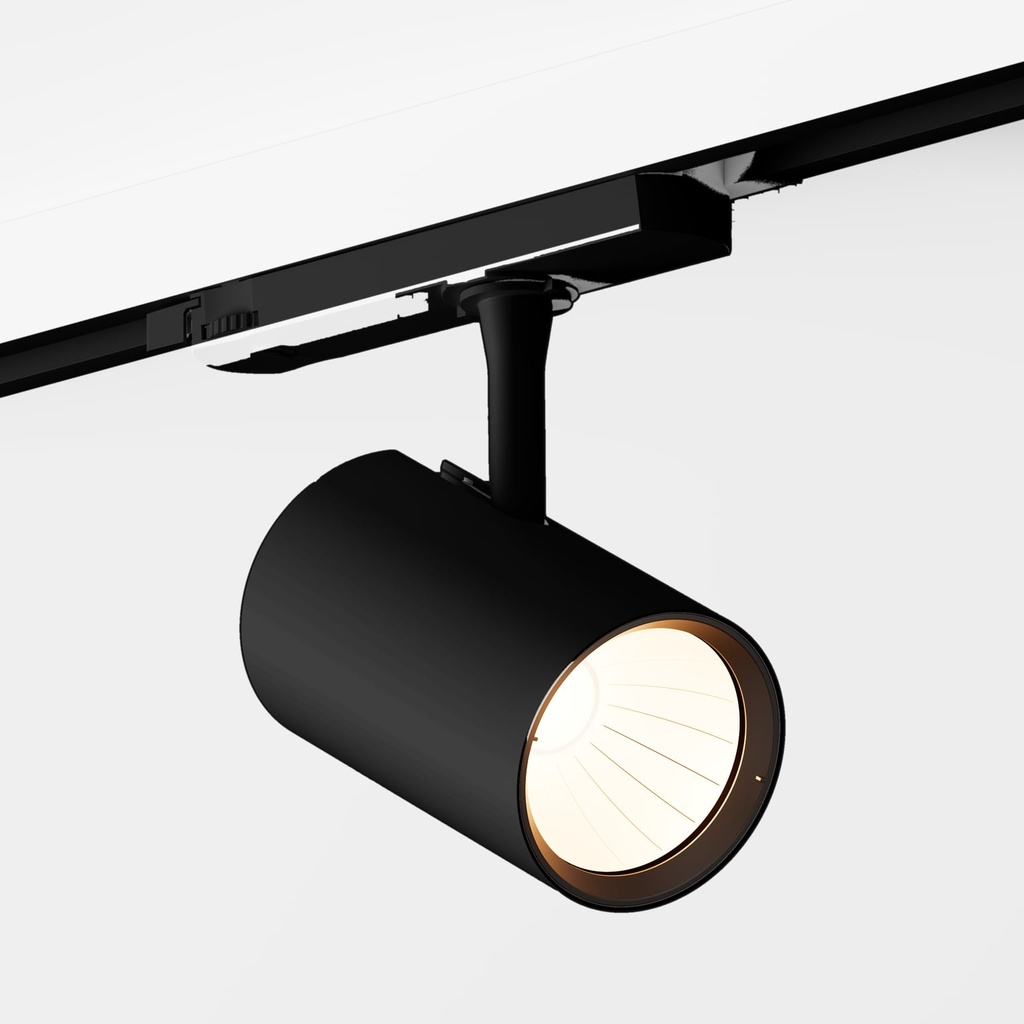

Fixed adapter for 3-phase track
The adapter is fixed to the luminaire and clicks into the profile of a 3-phase 230V track. You drill nothing and wire nothing, so moving, adding or removing a spot happens without any work at the ceiling. The track is a separate article and is not in the box.
-
Version
Black, Ø73 mm head
The head measures Ø73 mm and the spot is 120 mm long. It rotates and tilts. The driver is on board; the LED is not replaceable. 5-year warranty. The same spot comes in white.
Application

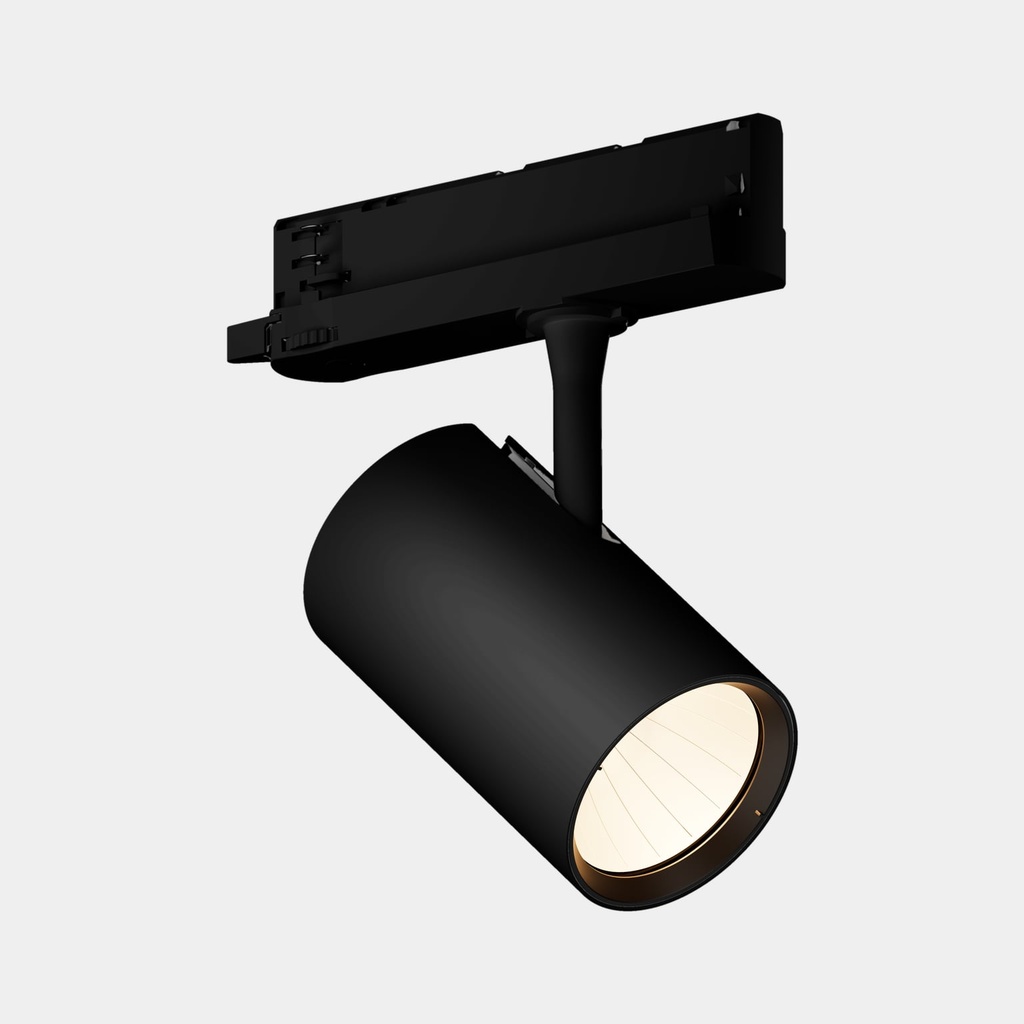

24W track spot with a fixed 3-phase adapter, black
The Prisma 24 belongs on a 3-phase 230V track. Such a track carries three switchable circuits on one profile, so groups of spots can be switched separately. Track and power feed are separate articles.
The spot draws its power from the track; the driver is built into the luminaire. IP20 and indoor only. Not dimmable, so no dimmer in the circuit.
In the box
Scope of supply, per unit.
Included
- Fixture
- Light source
- LED driver
- Track adapter
- Manual
Specifications
Measurements are nominal. Check the dimensioned drawing before cutting.
Dimensions & Recessed Fit
- Dimensions
- Ø73 × 120 mm
General & Mounting
- Indoor / outdoor
- Interior
- Appliance class
- Class II (double insulated)
- Mounting (location)
- Track
- Adjustability
- Adjustable
- Fixation (method)
- Track
- IP rating
- IP20
- Number of light points
- 1
Light
- Socket type
- Integrated LED
- LED lifetime
- 50000 h
- Light output
- 3104 lm
- Color rendering (CRI)
- 92
- Light source
- LED
- Light color
- 3000K
- Beam angle
- 41°
- Efficacy (lm/W)
- 129.33
- Total wattage
- 24 W
Electrical & Safety
- Light source replaceability
- Not replaceable
- Dim technology
- Non-dimmable
- Power source
- Mains (corded)
- Dimmable
- No
- Input voltage
- 230 V
Colour, Material & Finish
- Colour
- Black
- Material
- Aluminium
- Finish
- Powder coated
Energy label
The EU energy label and product information sheet of the light source.
Frequently asked questions
Questions we are regularly asked about this fixture and its variants.
Which track does this spot fit?
A 3-phase 230V track. The adapter is fixed to the luminaire and clicks into the profile; you drill nothing and wire nothing. A 1-phase track has a different profile and a different adapter — this spot is not meant for it. The track is a separate article and is not in the box.
Is the light source replaceable?
No. The LED is integrated into the luminaire and is not replaceable; the driver is on board as well. The luminaire carries a 5-year warranty. Light output is 3104 lm at 24W, with a rated life of 50000h.
Is the spot dimmable?
No. The built-in driver is not dimmable, so no dimmer belongs in the circuit. Switching is done per circuit of the 3-phase track.
Does the black version give less light than the white one?
No. Both versions give 3104 lm at 24W, with the same 41° beam and the same 3000K light colour. The colour is on the housing, not in the reflector.
